Press and hold the power key to power on the device |

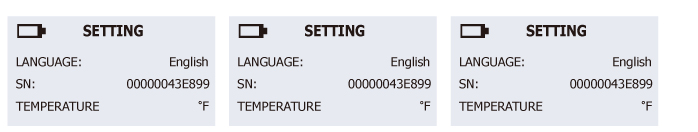

Language:
Use the " Enter " key
to choose the language you prefer.
Device S/N:
The device serial number is for you to update the device's firmware via CD or internet.
Note: All the update firmware is synchronous to the device’s serial number.
Temperature:
Use the " Enter " key
to choose between Fahrenheit and Celsius.

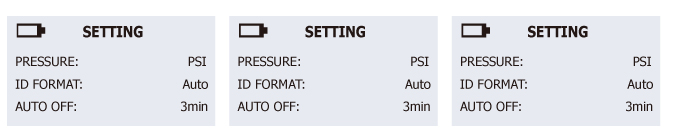

Pressure:
Use the " Enter " key to choose between PSI and kPa.
Use the " Enter " key to choose between PSI and kPa.
ID Format:
Change the ID format between decimal and hexadecimal with the " Enter " key
Note:
The preset setting is AUTO that automatically change format based on input.

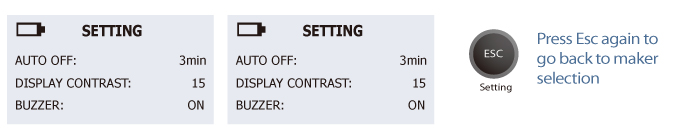

Auto off:
User can adjust how quickly the tool will turn off after a period of non-use. This feature can also be disabled. Press the "Enter" key
to select desired auto off time.
Display contrast:
User can adjust the contrast of display. Press the " Enter " key to highlight and use the arrows to adjust between 01 to 30
Buzzer:
User can adjust the device to beep after receiving tire sensor information. Press the " Enter " key to buzzer and use the arrows to adjust between on and off.
