Press and hold the power key to power on the device
During power on,The device display the CUB logo.
Software revision number follows after the CUB logo.
Now the device is at the maker selection menu
Relearn the vehicle with OBDII. This function require OBDII cable.

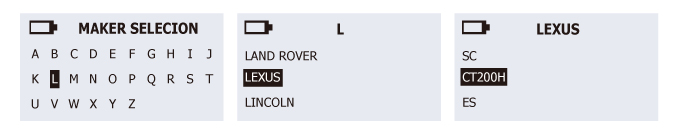

Maker selection: Use the arrow key tobrowse alphabets of carmakers, and press the " Enter " key to select.
Maker selection: Use the arrow key to browse automakers, and press the " Enter " key to select.
Model selection: Use the arrow key to browse models, and press the " Enter " key to select.

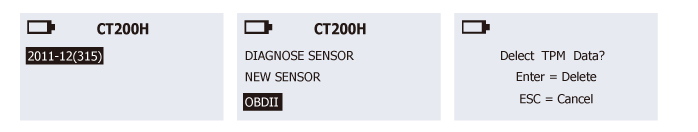

Year selection: Use the arrow key to select year and press the "Enter" key to select.
Function selection: Use the arrow key to select OBD II and press the "Enter" key to select.
TPMS Data selection: Press the " Enter " key to delete previous stored TPMS data. Press the " Esc" key to keep previous stored TPMS data .
Diagnose sensor : Sensor AID will now activate the sensor. The respond time from the vehicle may vary depending on MMY. Sensor AID will beep after receiving sensor information.
Diagnose process: Press the " Enter " key to start diagnose. The flashing tire indicates the tire position. Start Diagnose sensor starting from LF,RF,RR and LR. Note: If the car is equipped with spare tire, spare tire must be daignosed and relearn with the vehicle.
OBD II connect: Insert OBD II module into the OBD II connector of the vehicle and turn on ignition by using the "Enter" key to start. The following screen will display.

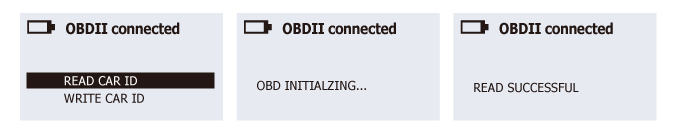

Read Car ID: Use the arrow key to Select "Read Car ID " and press the " Enter " key to select.
Read Car ID process: Sensor AID is now starting the communication with the vehicle.
Read Car ID complete: After Sensor AID successfully extract IDs from the ECU, you will hear 2 short beeps.

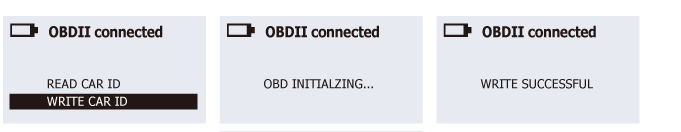

Write Car ID: Use the arrow key to select " Write Car ID " and e press the " Enter " key to select.
Write Car ID process: CUB Sensor AID is now starting the communication with the vehicle. Then CUB Sensor AID is overwriting the sensor ID in the ECU.
Write Car ID complete: After CUB Sensor AID successfully overwrite the sensor ID to the ECU, you will hear 2 short beeps.
